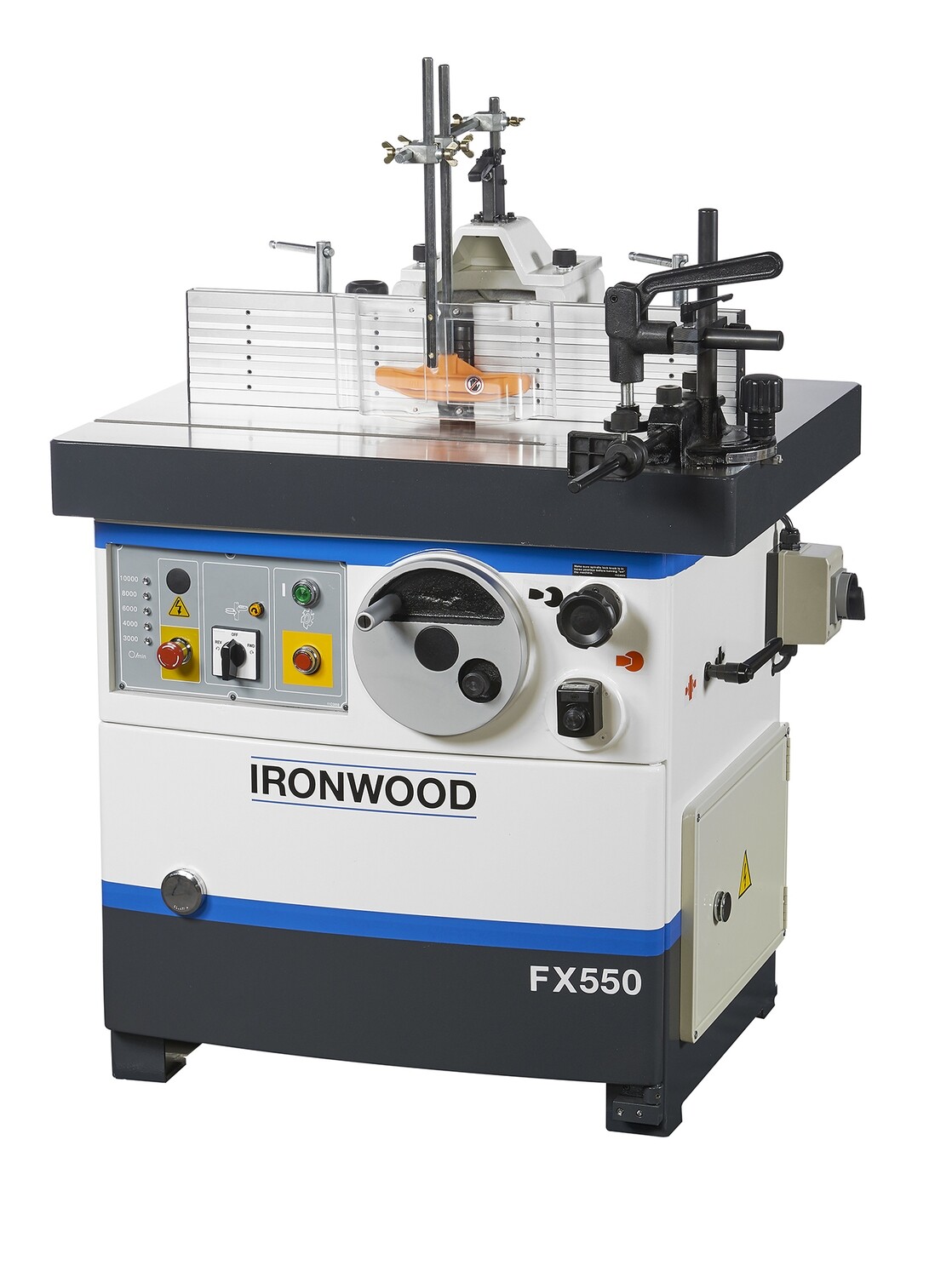

Ironwood FX550 Shaper

FX 550
In stock
Product Details

Ironwood FX550 5.5HP Shaper

The Industrial Ironwood FX 550 5.5HP Shaper features a non-tilting, interchangeable spindle for quick set-up and adjustments.


  • 5.5 Horsepower Motor - IE3
  • Electrical: 3PH 230V
  • 1 ¼" x 6" Spindles: Interchangeable - Can also be fitted with ½", ¾", 1", 30mm and 35mm sizes
  • Speeds: 3000/4000/6000/8000/10000 RPM
  • Table Size: 700mm x 900mm - Table Height: 900mm
  • Fine-adjustment capability with micrometers on both the infeed and outfeed sides
  • Electronic spindle brake
  • Operational controls on the central control panel:
    • Forward and reverse spindle rotation with a directional indicator light to ensure safe climb-cutting operations
    • Vertical spindle adjustment by a precision handwheel read via a digital indicator
    • Spindle rotation controls with direction indicator light
    • Spindle speed indicator lights
    • Power on/off switches with emergency stop
  • Dust Collection: 2 Ports: 4" each
  • Shipping Weight: 926 lbs
