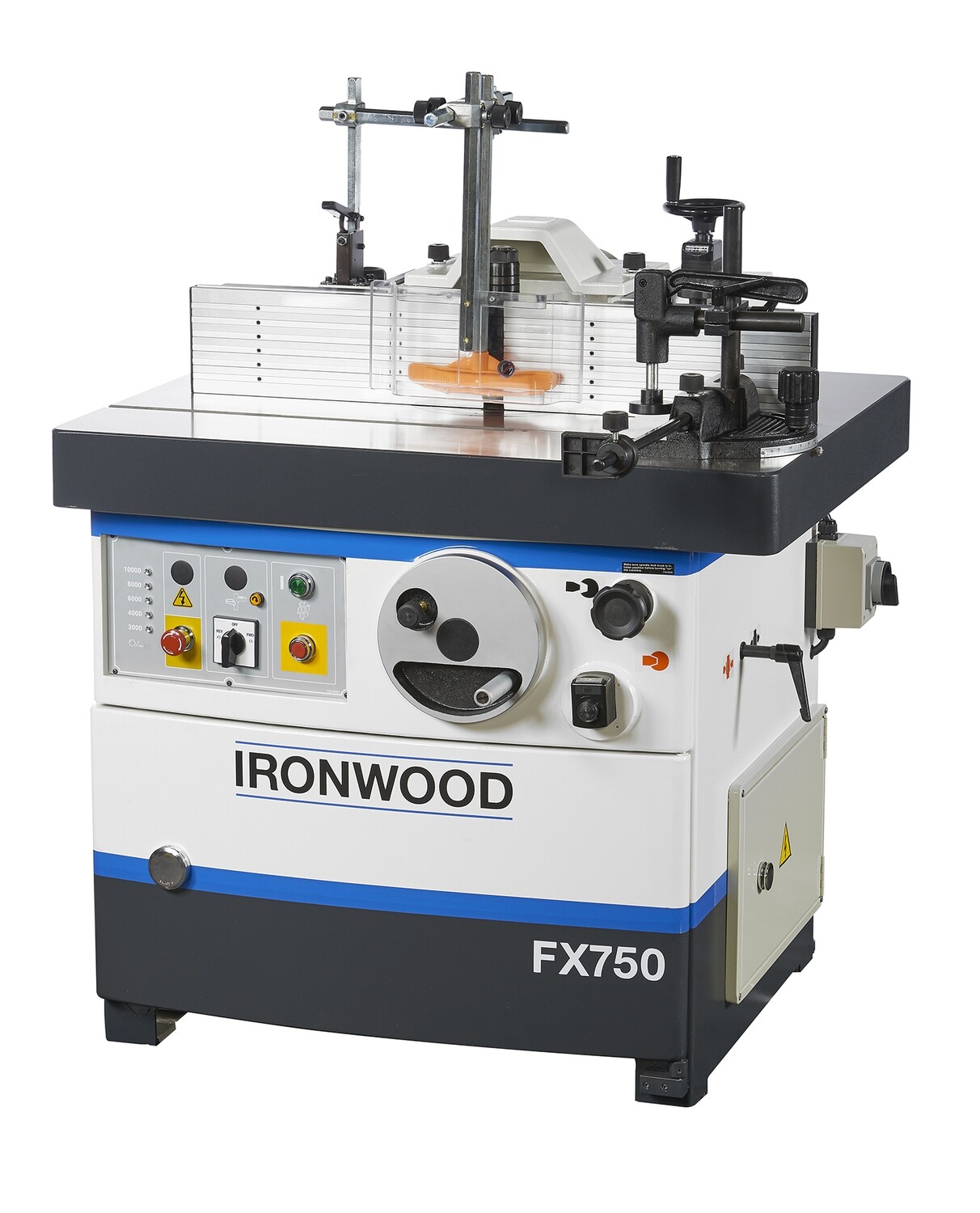

Ironwood FX750 Shaper

Ironwood FX750 7.5HP Shaper

The Industrial Ironwood FX 750 7.5HP Shaper features a non-tilting, interchangeable spindle for quick set-up and adjustments.

Features

• 7.5 Horsepower Motor: IE3
• Electrical: 3PH 230V
• 1 ¼" x 6" Spindles: Interchangeable - Can also be fitted with ½", ¾", 1", 30mm and 35mm sizes
• Speeds: 3000/4000/6000/8000/10000 RPM
• Table Size: 800mm x 1000mm - Table height: 900 mm
• Fine-adjustment capability with micrometers on both the infeed and outfeed sides
• Electronic spindle brake
• Operational controls on the central control panel:
  • Forward and reverse spindle rotation with a directional indicator light to ensure safe climb-cutting operations
  • Vertical spindle adjustment by a precision handwheel read via a digital indicator
  • Spindle rotation controls with direction indicator light
  • Spindle speed indicator lights
  • Power on/off switches with emergency stop
• Dust Collection: 2 Ports: 5"/4"
• Shipping Weight: 1,168 lbs
