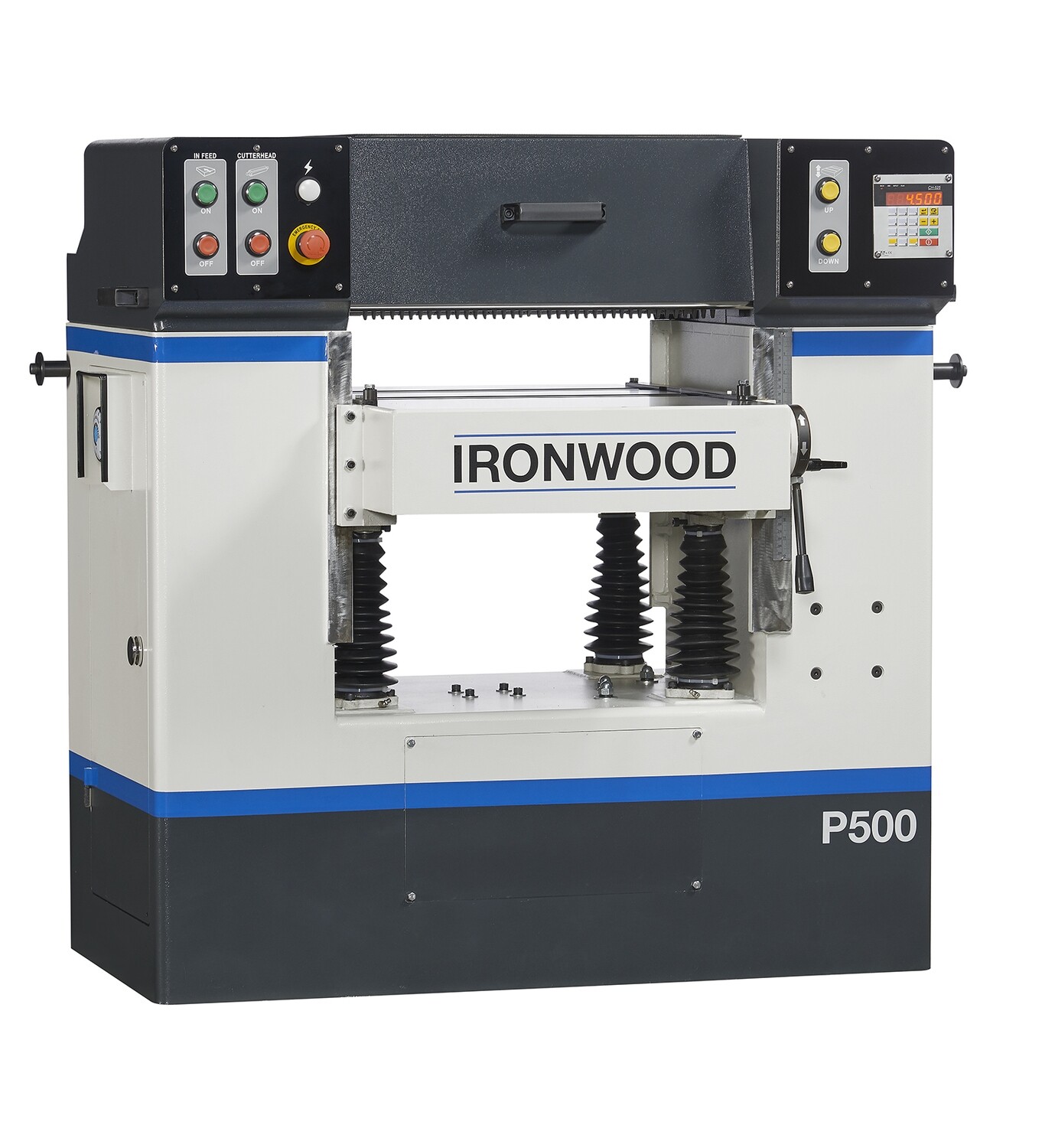

20" Planer - Ironwood

In stock
Product Details

The IRONWOOD P500 20" Thickness Planer is the craftsman’s choice for creating beautiful, professional pieces. This machine features an enhanced heavy-duty cast iron table that is heat treated and precision ground to assure the greatest rigidity and stability during intense cutting operations.

Max width of work piece 508 mm
Max thickness of work piece 300 mm
Min thickness of work piece 10 mm
Max cutting depth 8 mm
Min length of work piece 220 mm
Cutterhead Helical
Cutterhead Ø 98 mm
Number of knives 75
Cutting circle 102 mm
Cutterhead speed 4800 RPM
Table width 562 mm
Table length 748 mm
Infeed rollers (1) 76 mm Roller
Outfeed rollers (2) 60 mm Rollers
Table roller (2) 68 mm
Table adjustment Motorized
Table position display Digital Controller
Variable feed speed 19 – 39 FPM
Cutterhead motor 5 HP IE3
Feed motor 1 HP
Table raise/lower motor 1/4 HP
Dust requirements 6" port / 800 CFM
Shipping weight 1800 lbs
Electrical connection* 230 Volts | 3-phase | 60 Hz.
