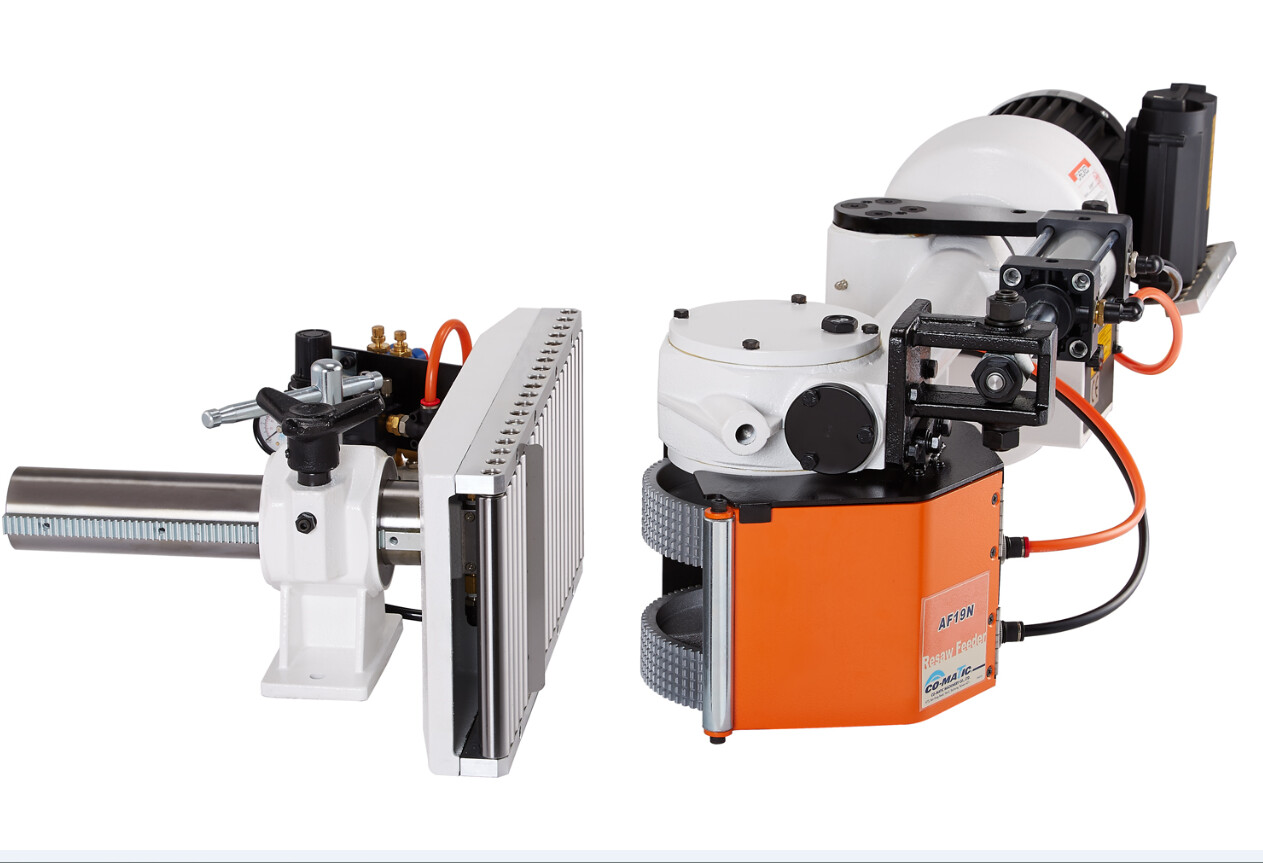

Bandsaw Power Feeder - Auto Resaw 1/2HP

AF19N
$3,695.00
In stock
1
Product Details

[tab name='Overview']Pneumatic Bandsaw Power Feeder - Co-Matic AF19N Heavy Duty

Built specifically for resawing on a bandsaw

The Co-Matic AF19N Pneumatic Bandsaw/Resaw Feeder is built for quick, safe, and even feeding through a bandsaw. This feeder automatically adjusts to the thickness of the workpiece thanks to the pneumatic system where the spring loaded version has to be manually adjusted.

*Ships via LTL Freight - Contact us if you require lift gate service and/or are located at a residential address or outside the lower 48 states.

Optional: 180 x 40mm RU18 Polyurethane Roller Assembly - Recommended if the face of the workpiece where the rollers make contact is finished and cannot have any marring.

[tab name='Specs']Your bandsaw table needs the following amount of space to mount the feeder on the front right (outfeed) corner of the table without adding an extension bracket:

1. 9.3" is required from the tip of the blade to the end of the table on the outfeed side.

2. 11.25" is required from the tip of the blade to the end of the table (opposite the fence).

This feeder can fit on smaller bandsaw tables, but may require an extension off the side of your bandsaw table where the feeder is mounted.

  • 1/2 HP motor
  • 10 Speeds ranging from 4 - 60 fpm
  • 2 Serrated Rollers: 6-7/8" X 1-9/16"
  • Pneumatic sensor automatically adjusts to width of workpiece
  • Scaled roller fence included
  • 2 Year Warranty

Upgrade to the AF110 Resaw Power Feeder for variable speeds and a 3/4HP motor.

Height (w/Handle) 12-1/4"
Width 13"
Length Fully Extended 43"
Net Weight 176 lbs
Gross Weight 209 lbs
Max. Height of Rollers 7-7/8"
Swing Rotation 30°
Max. Roller-Blade Clearance 8-1/4"
Fence Size 15-3/4"L x 7-7/8"
Max. Fence-Blade Clearance
8-1/4"

[tab name='Videos']
