Bandsaw Power Feeder - Auto Resaw 3/4HP

AF110N
$4,195.00
In stock
1
Product Details

[tab name='Overview']Pneumatic Bandsaw Power Feeder - Co-Matic Heavy Duty Variable Speed

Resaw feeder capable of heavy duty use on a bandsaw

The AF110 Pneumatic Bandsaw Power Feeder is ideal for heavy duty resawing on a bandsaw. It's pneumatic adjustment eliminates the need to readjust the feeder after multiple passes or changing widths/thicknesses which sets it apart compared to spring loaded feeders.

Variable Speed

Speed settings can easily be adjusted depending on your requirements. With speed settings ranging from 3.3 - 98.4FPM, the AF110 provides convenience and consistency for resaw feeding.

*Ships via LTL Freight - Contact us if you require lift gate service and/or are located at a residential address or outside the lower 48 states.

[tab name='Specs']Your bandsaw table needs the following amount of space to mount the feeder on the front right (outfeed) corner of the table without adding an extension bracket:

1. 9.5" is required from the tip of the blade to the end of the table on the outfeed side.

2. 12.15" is required from the tip of the blade to the end of the table (opposite the fence).

This feeder can fit on smaller bandsaw tables, but may require an extension off the side of your bandsaw table where the feeder is mounted.

*Similar to the AF19N Resaw Feeder with a larger motor, roller, and variable speeds.

  • Variable Speed - 3.3 - 98.4 FPM
  • 3/4 HP Motor
  • Max Roller/Blade Clearance - 9-1/4"

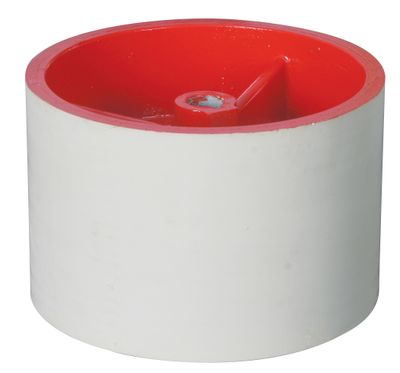

  • 1 Cast Steel Roller: 9-7/16" Dia. 6-3/16" W (Polyurethane Roller available at additional cost)
  • 2 Year Warranty
  • Scaled Roller Fence Included
Height (w/Handle) 12-1/4"
Width 14-1/2"
Length Fully Extended 35-3/4"
Net Weight 225 lbs
Gross Weight 285 lbs
Max. Height of Rollers 6-3/16""
Swing Rotation 30°
Max. Roller-Blade Clearance 9-1/4"
Fence Size 15-3/4"L x 7-7/8"
Max. Fence-Blade Clearance 8-1/4"

*460V option my be available upon request with longer lead time

[tab name='Videos']


[tab name='Reviews']


"Putting the new Felder 710 and Shop Gear Co Matic feeder to the test. Making 1/16” African mahogany veneer. Might be the longest piece of veneer I’ll ever do but if not at least now I’m equipped to do it over and over with great results."
