Smart 3 Wheel Variable Speed Power Feeder

Model: DS300
$2,395.00
On Sale
Price $2,854.00
Save 16%
Electrical
Please choose
Add Height Indicator Kit
Please choose
1
Save this product for later
Share this product with your friends

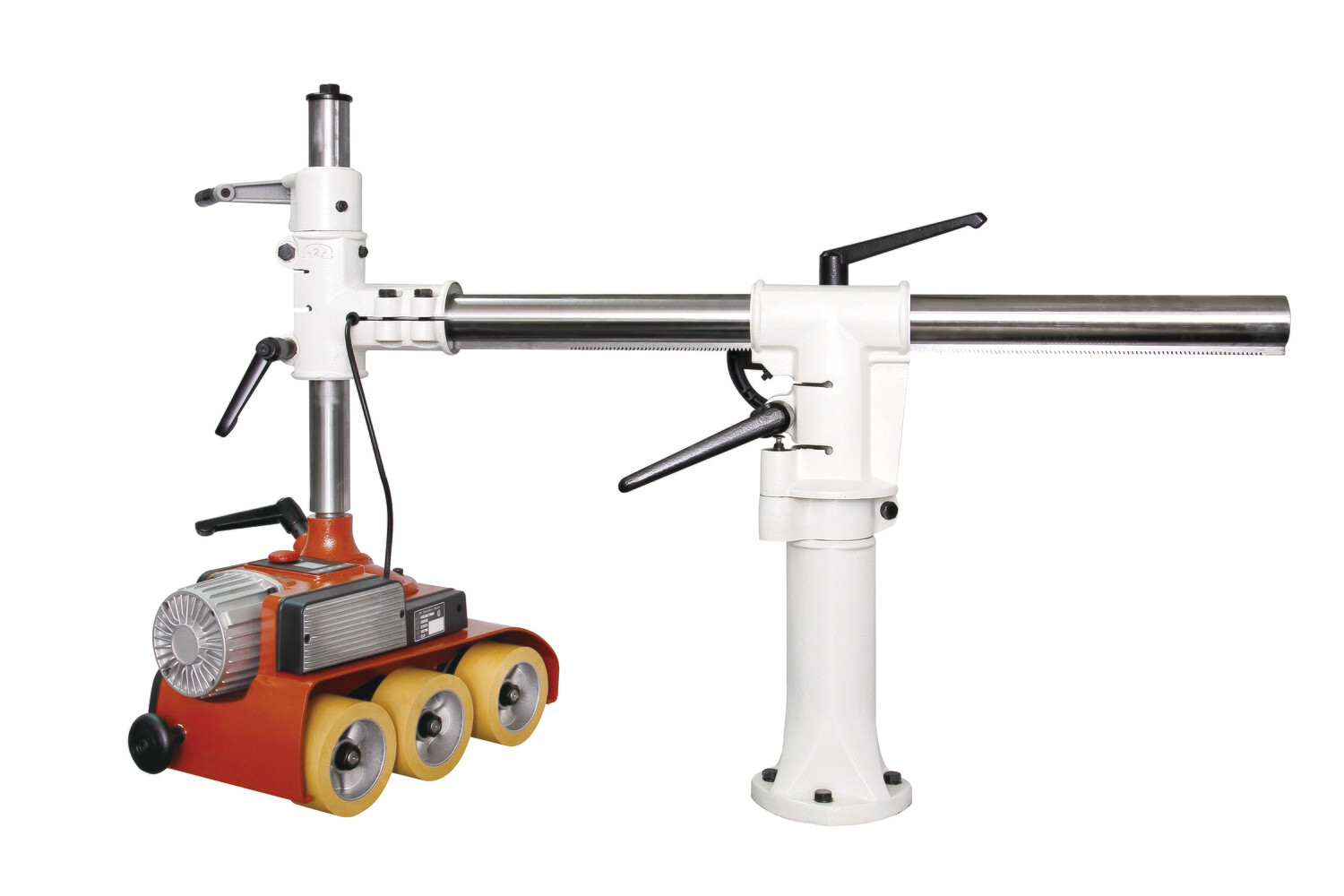

Smart 3 Wheel Variable Speed Power Feeder
Product Details

[tab name='Overview']Co-Matic DS300 Variable Speed Power Feeder w/Smart Stand - 3 Wheel DC Brushless Servo

The Co-Matic DS300 is the DC30 Variable Speed Feeder with an upgraded Smart Stand. This is the most robust and flexible 3 wheel feeder and stand combo in the world.

The DS300 Feeder is adjusted up and down from the front so you don't have to walk to the back of the machine. The horizontal arm is 15" longer (42") than standard arms and is always stationary so you always have a high clearance to run taller parts. The memo-locking mechanism of the smart stand also allows you to swing the feeder out and back in to the exact position you were operating at previously.

Special: Buy two extra grip 50 Durometer GU12 Rollers with a DC/DS Series Feeder and get two free

What makes the Smart Stand worth it?:

  1. 42" Horizontal Adjustment Arm: This power feeder stand is also built with a longer support column and arm (42 inch horizontal adjustment arm compared to the standard 28 inch arm), making it compatible with larger machinery.
  2. Vertical Adjustment at Front: Standard power feeder stands require vertical adjustment near the base of the stand where the smart stand is vertically adjusted directly above the power feeder, so your operator doesn't have to walk to the back of the machine. This vertical adjustment also makes it so you can pass taller parts up to 20 inches through a feeder without crashing into the horizontal arm of the stand as the horizontal arm is always stationary.
  3. Memo-Locking Feature: When you swing the power feeder out away from machine and bring it back in, the memo-locking mechanism locks the feeder perfectly back into its prior position.
  4. More Durability: The base, joints, and handles of the SS130 Smart Stand are superior to that of the standard universal stands and built for longer wear
  5. Optional Height Indicator: Add the Height Indicator to know exactly how high the rollers are as you raise and lower the feeder

What sets this feeder apart from other feeders?:

1. DC Brushless Servo Motor

Experience equivalent torque as 1HP AC motor feeders thanks to a powerful 2/3HP brushless servo motor while saving up to 70% in energy costs.

2. Variable Speed & Digital Controls

No more gear change-out. Easily identify your feed rate and change the speed with the turn of a button at 1 fpm increments until you reach your desired speed from 5-72 fpm

3. Instant 90° Memo-Locking Swivel Adjustment

Swivel the power feeder and lock it in instantly - perpendicular or parallel to the fence with the memo-locking feature not found on standard stock feeders.

4. Modifiable Wheel Layout

Run this feeder with standard wheels, or simply replace them with thin, split wheel(s) for cutterhead or blade clearance

*Thin RU21 wheels are sold separately and not included with feeder

[tab name='Specs']

Type 3 Wheel Variable Speed
Horse Power & Rotation 2/3HP (1HP AC Equivalent), 1-3 Phase, 110-220V; Forward/Reverse
Range of Speeds
5 - 72 FPM
Roller Size

∅120 x 60 mm (∅4-3/4″ x 2-3/8″) &

∅120 x 25 mm (∅4-3/4″ x 1″)

Roller Suspension

18 mm (3/4″)

Warranty Period 2 years
Base Bolt Pattern 108 x 90mm Center to Center

Optional Digital Height Indicator Info & Installation Instructions

[tab name='Videos']

Video of Smart Stand included in the DS300

[tab name='Reviews']"I have had the DC30 for almost a year and I really like it. There are two features that have made our manufacturing process easier and more efficient - the smart stand and the variable speed. The DC30 is our work horse power feeder. We run it up to 12 hours a day and it has yet to have an issue. The smart stand is quick and easy to set up. For anyone who needs a power feeder that is both reliable and robust, I would highly recommend the DC30."

Casing Innovations, Michigan, USA
